SainSmart Genmitsu Vacuum Clamp Pod Aluminum CNC Hold Down Kit 4.7x4in

Description

Product Overview

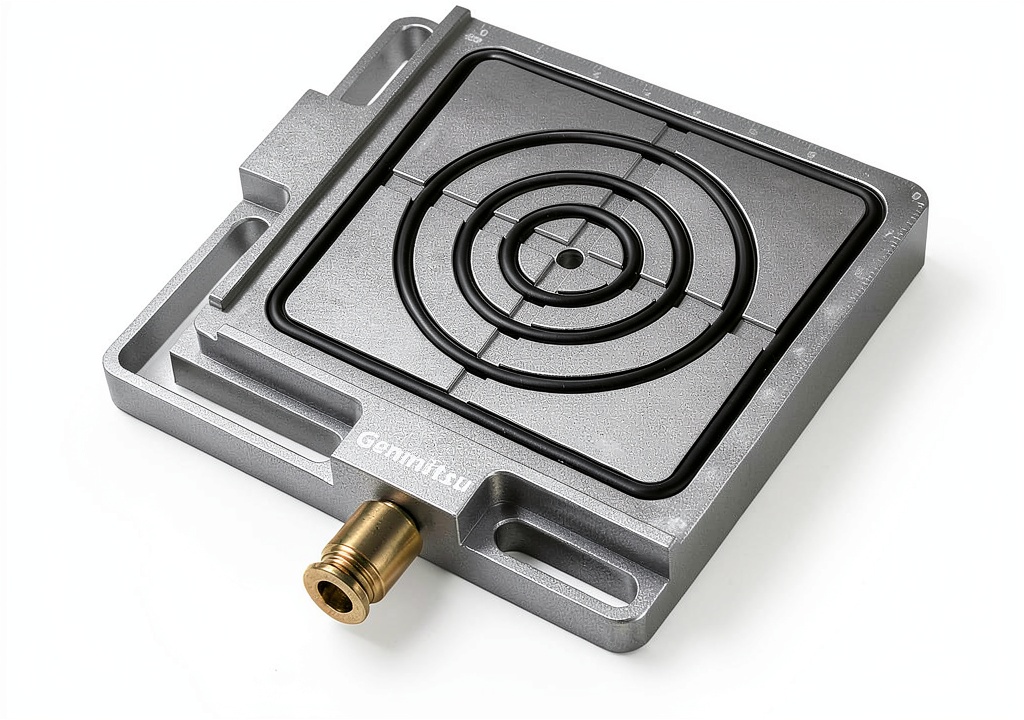

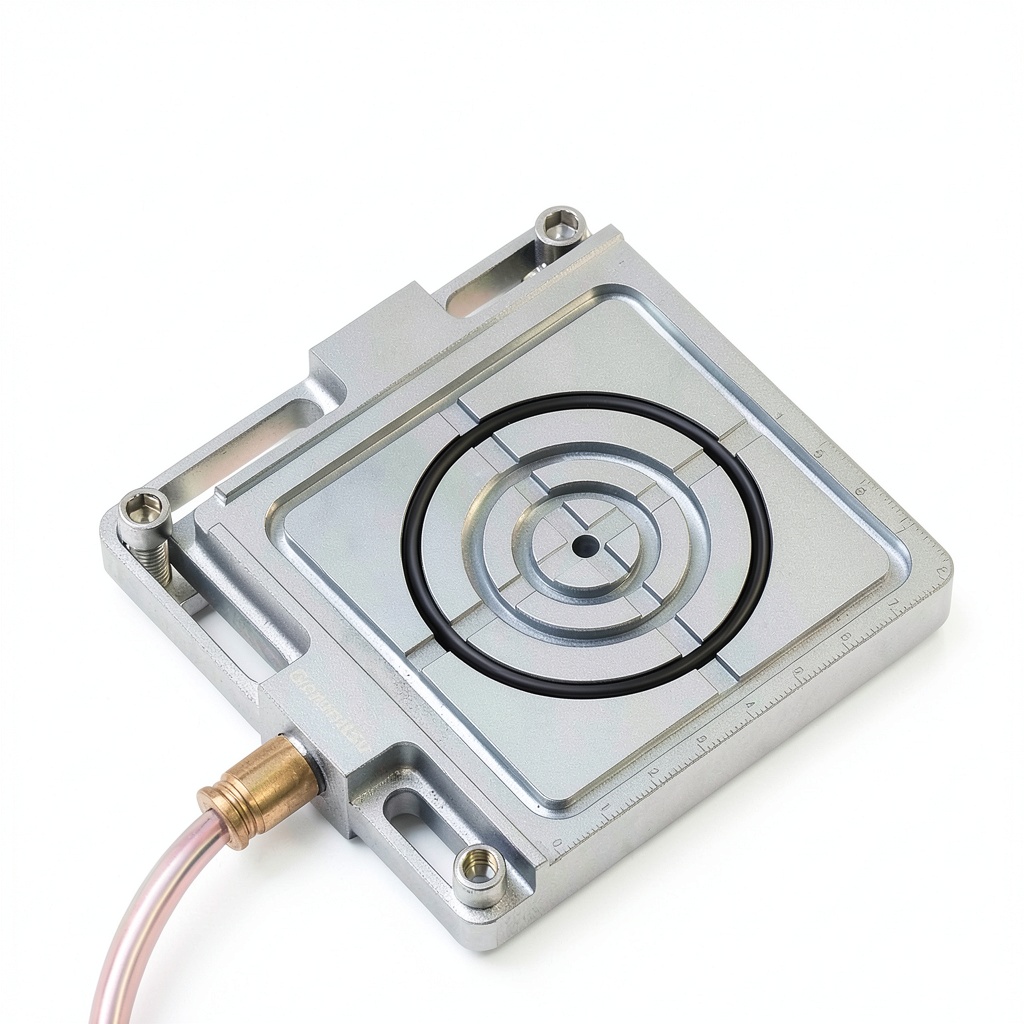

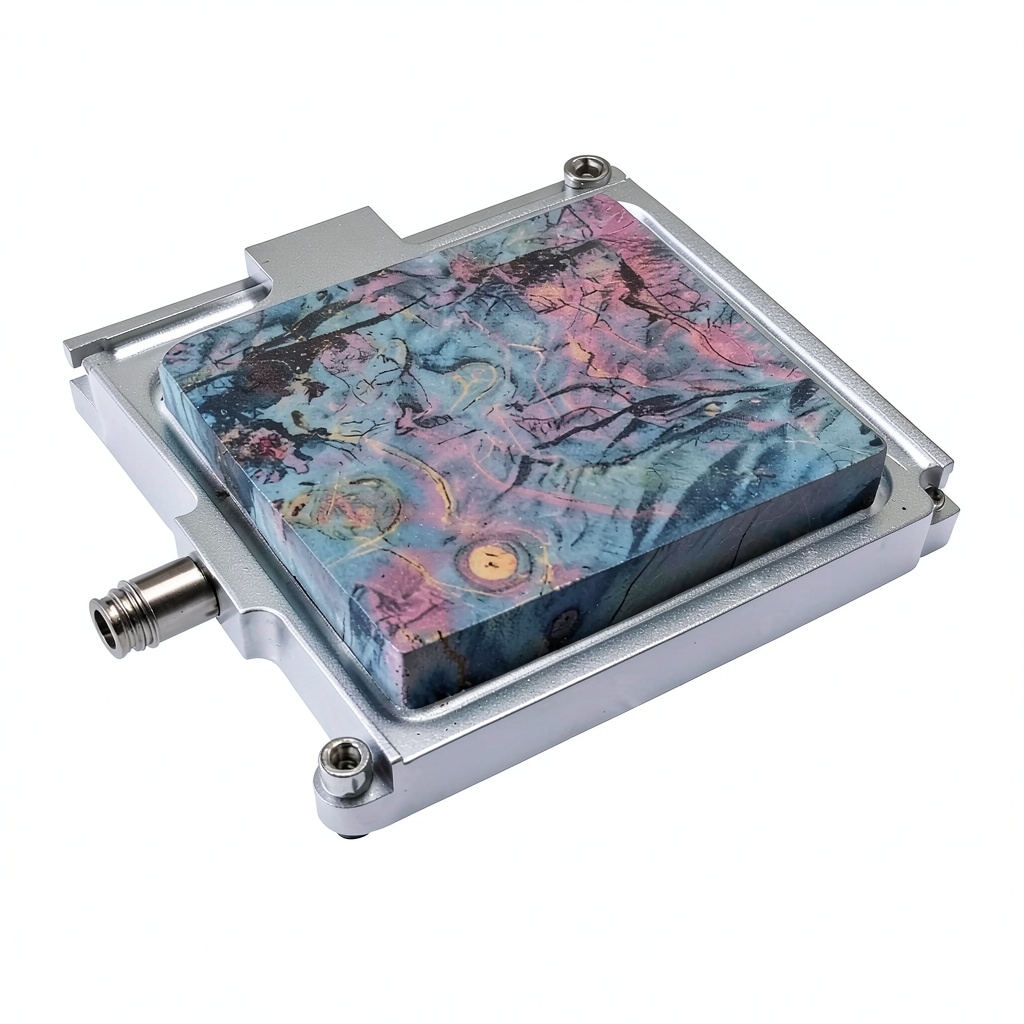

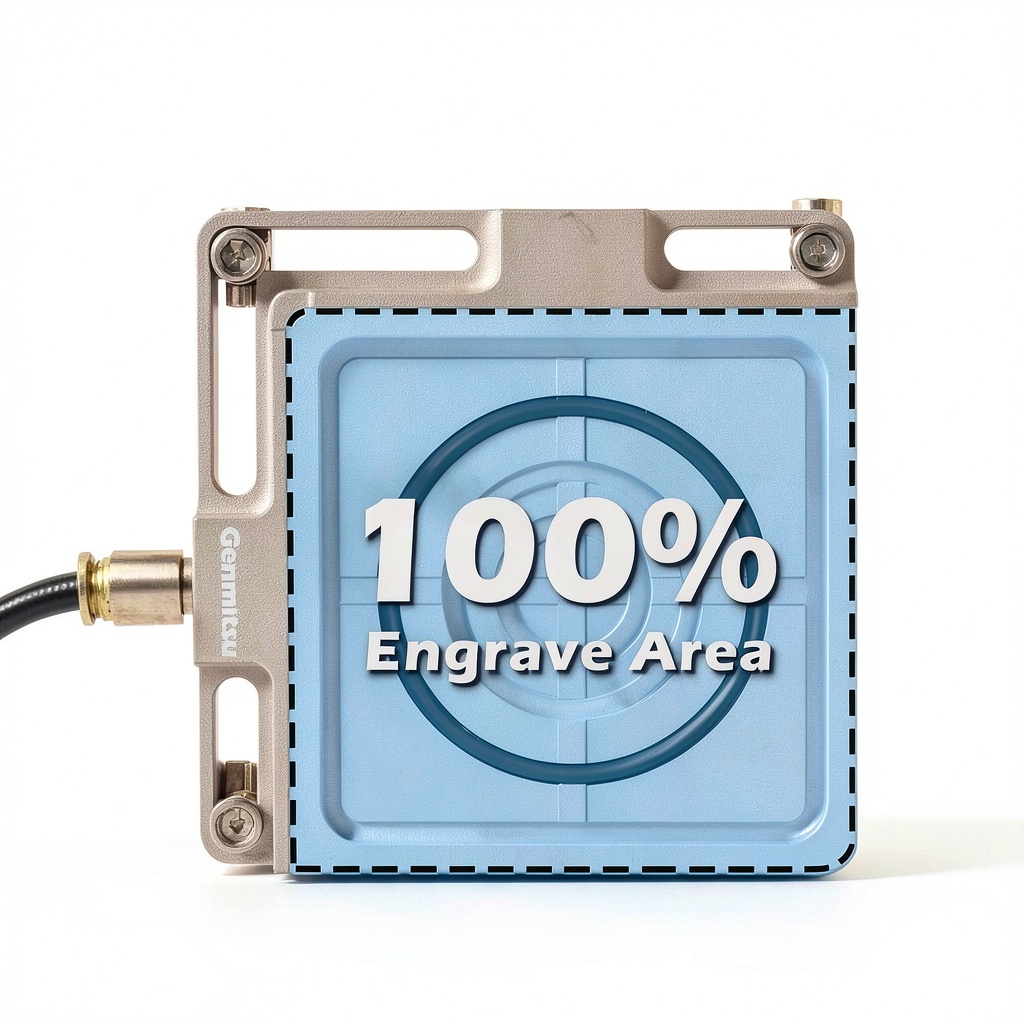

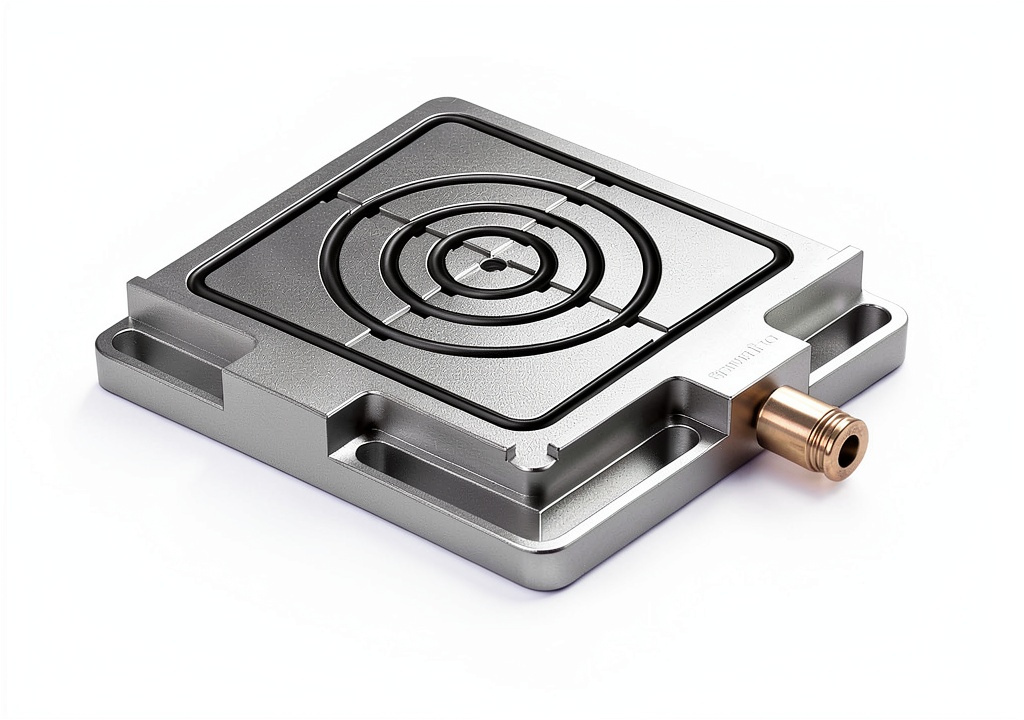

The SainSmart Genmitsu Vacuum Clamp Pod is engineered as a high‑precision workholding accessory for CNC routers and milling machines. Constructed from aerospace‑grade aluminum, the pod offers exceptional rigidity while remaining lightweight at just 1.17 pounds. Its compact footprint—measuring 4.7″ x 4″ x 0.6″ (120 x 102 x 15 mm)—fits comfortably on standard worktables without sacrificing clearance. The pod surface is finished with a smooth, non‑abrasive rubber seal that creates an airtight chamber when connected to a vacuum source. This design enables the clamp to hold objects ranging from a 24 mm coin up to a 90 mm wooden block, preserving 100 % of the engraving area for maximum material utilization. The kit includes a set of Φ6 mm and Φ8 mm air tubes, as well as adapters to convert to Φ10 mm, ensuring compatibility with most vacuum pumps on the market. Mounting is straightforward: M6 screws and T‑nut slots allow installation on MDF, aluminum boards, or hybrid tables with T‑slot tracks, making the pod a versatile addition to any CNC workstation.

Usage

Designed for a broad spectrum of materials, the vacuum clamp pod excels in woodworking, acrylic fabrication, plastic molding, and light‑metal machining. Hobbyists can quickly secure small decorative pieces, while professional shops can use the pod for batch production of intricate components that require precise alignment. Because the vacuum system eliminates the need for mechanical clamps, users experience faster setup times and reduced risk of material deformation. The pod is especially valuable in applications where the workpiece surface must remain unobstructed, such as detailed engraving, laser etching, or fine‑detail routing. Its ability to hold irregularly shaped objects—provided the sealing surface is flat—expands its utility to custom projects, prototype development, and educational environments where students experiment with diverse materials. Pair the pod with any standard vacuum pump (not included) to achieve a reliable hold that maintains consistent pressure throughout the machining cycle.

Why Choose Us

Choosing the SainSmart Genmitsu Vacuum Clamp Pod means investing in durability, precision, and flexibility. The aluminum construction resists corrosion and wear, ensuring a long service life even under continuous use. Each pod is CNC‑machined to tight tolerances, guaranteeing a perfect fit with the supplied sealing gasket and eliminating air leaks that could compromise holding strength. The inclusion of multiple air tube adapters reduces the need for additional accessories, streamlining the workflow and lowering overall costs. SainSmart’s reputation for quality control is reflected in the pod’s consistent performance across a wide temperature range, making it suitable for both indoor workshops and controlled industrial environments. Moreover, the product is backed by a responsive customer support team that provides technical assistance, replacement parts, and guidance on optimal vacuum pump selection, reinforcing confidence in the purchase.

Key Features

• Aluminum body delivers superior strength while remaining lightweight for easy handling.
• Vacuum‑based holding secures workpieces without obstructing the work surface, maximizing usable area.
• Compatible with wood, metal, acrylic, plastic, and other common CNC materials.
• Simple M6 screw and T‑slot mounting system fits most CNC tables and hybrid workstations.
• Responsive customer support and easy access to replacement parts ensure long‑term reliability.

FAQ

Do I need a specific vacuum pump for this pod?

No, the pod works with any standard vacuum pump that can connect to the included Φ6 mm, Φ8 mm, or Φ10 mm adapters. Choose a pump that provides sufficient suction for the size of the workpiece you intend to hold.

Can the pod hold irregularly shaped objects?

Yes, as long as the side of the object placed on the pod is flat enough to create an airtight seal with the rubber gasket. This makes it suitable for a wide range of custom and prototype parts.

Is the pod suitable for high‑speed CNC routing?

Absolutely. The rigid aluminum construction maintains stability at high spindle speeds, and the vacuum hold eliminates vibration that can affect surface finish.

How do I install the pod on my CNC table?

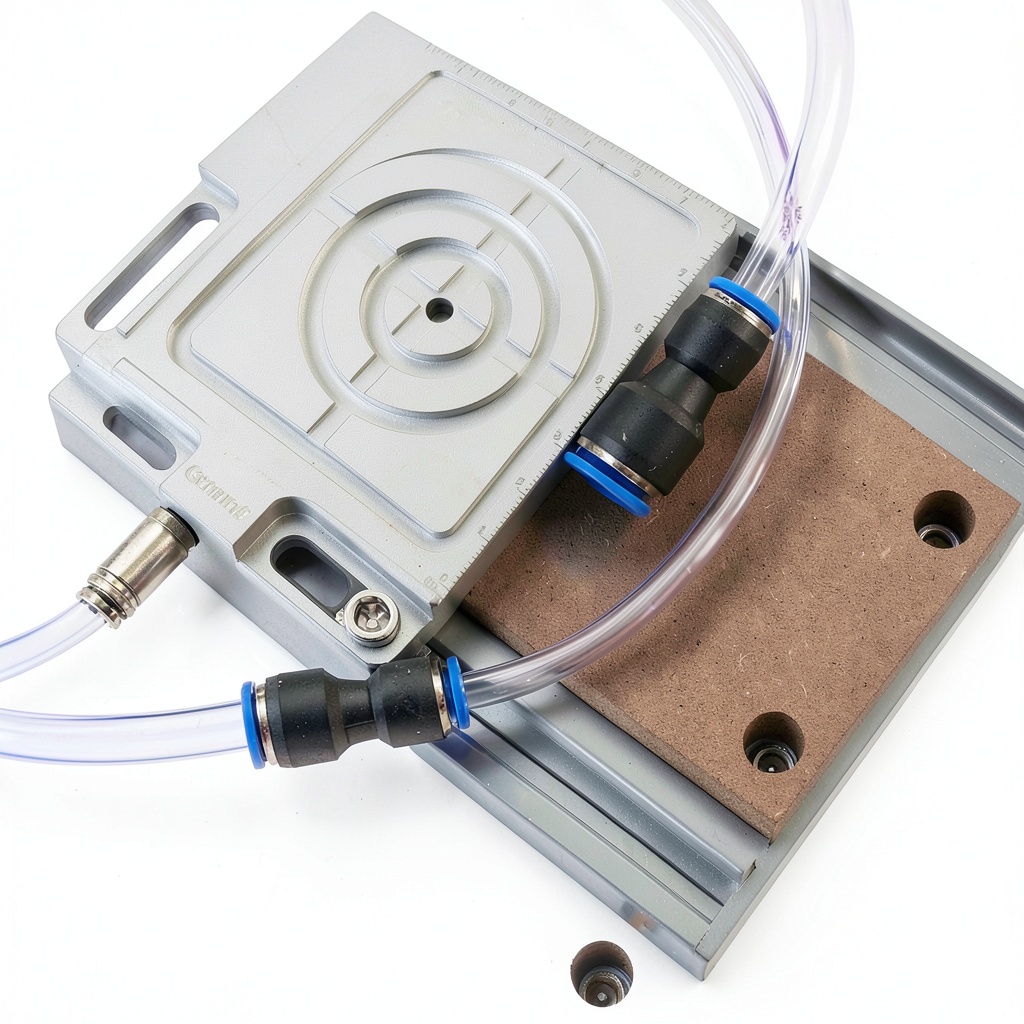

Simply align the M6 screw holes on the pod with pre‑drilled holes on your MDF or aluminum board, or insert the M6 T‑nuts into a T‑slot track. Secure with M6 screws, and the pod is ready for use.

What is the warranty period for this product?

SainSmart offers a one‑year limited warranty covering manufacturing defects. Contact customer support for warranty claims or replacement parts.
